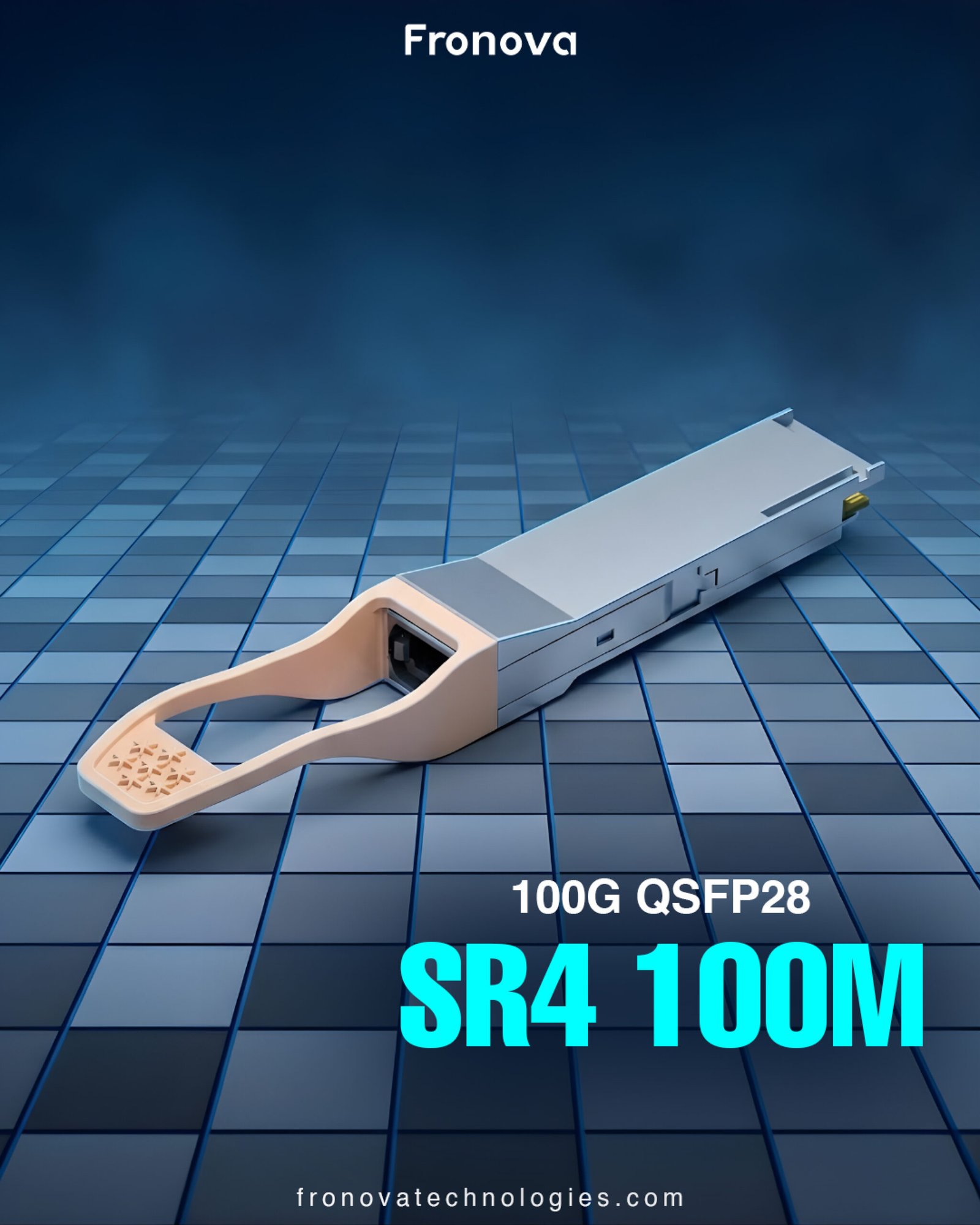

QSFP28-SR4-100G

The QSFP28-SR4-100G module is a high-performance 4x25G transceiver designed for optimal reach, bandwidth, density, and cost efficiency in high-port-count 100G systems and client-side 100G interfaces. Each lane supports data rates of 25Gbps over OM4 fiber for distances up to 100m. Operating at a nominal wavelength of 850nm, the module features a 38-contact edge type electrical interface and a 12-fiber MTP/MPO optical connector, making it ideal for multimode fiber systems.

Description

Features & Benefits

  • 4-Channel Full-Duplex Transceiver Modules
  • Supports data transmission rates up to 25Gbps per channel
  • Equipped with a 4-channel PIN photodetector array
  • Hot-pluggable QSFP28 for easy installation
  • Maximum link distance of 100m on OM4 MMF
  • Single 1×12 MPO connector receptacle
  • Hot-pluggable electrical interface
  • Operating temperature range of 0–70°C
  • Low power consumption of less than 2.5W

Applications

  • Designed for data center and communication network optimization
